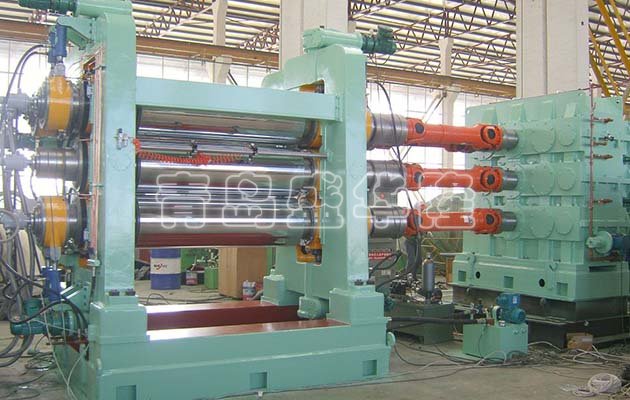

三辊压延机技术参数
| 型号MODLE 项目 ITEM | XY-3I(T)230x630 | XY-3I(T)252x720 | XY-3I(T)360x1120 | XY-3I(T)400x1200 | XY-3I(T)450x1400 | ||
| 辊筒直径 ROLL DIA | mm | 230 | 252 | 360 | 400 | 450 | |
| 工作长度 ROLL WORKING LENGTH | mm | 630 | 720 | 1120 | 1200 | 1400 | |
| 辊筒速比 ROLL RATIO | 1:1:1 1:1.2:1 | 1:1:1 | 1:01:01 0.733:1:1 0.733:1:0.733 | 1:01:01 1:1.383:1.383 1:1.383:1 | 1:1:1 1：1.5:1 | ||
| 中辊筒线速度MIDDIE-ROLL LINEAR SPEED | r/min | 0.8-8 | 2-15.9 | 3-20 | 3-26.39 | 2.62-2.62 | |
| 调距范围 ADJUSTING NIP RANGE | mm | 0-7 | 0-10 | 0-10 | 0-10 | 0-10 | |
| 制品最小厚度 MIN CALENDERING PRODUCT THICKNESS | mm | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | |
| 制品宽度 CALENDERING PRODUCT WIDTH | mm | 500 | 550 | 920 | 1200 | 1250 | |
| 电机功率 MOTOR POWER | kw | 7.5 | 22 | 45 | 55 | 75 | |
| 外形尺寸 | L | mm | 3168 | 3950 | 6500 | 6300 | 7320 |
| W | mm | 890 | 1720 | 1500 | 1500 | 2200 | |
| H | mm | 1830 | 1210 | 2440 | 2440 | 2900 | |
| XY-3I(T)610x1730 | XY-3I(T)710x1800 | XY-3I(T)710x2130 | XY-3I(T)800x2500 | XY-3I(T)860x2500 |
| 610 | 710 | 710 | 800 | 860 |
| 1730 | 1800 | 2130 | 2500 | 2500 |
| 1:1:1 1:1.4:1 | 0.5-1 任意可调 | 1:1:1 | 0.5-1 任意可调 | 0.5-1 任意可调 |
| 5.4-54 | 4-40 | 8-50 | 3-30 | 4-40 |
| 0-20 | 0-30 | 0-20 | 0-30 | 0-30 |
| 0.15 | 0.2 | 0.15 | 0.2 | 0.5 |
| 1500 | 1600 | 1900 | 2200 | 2200 |
| 160 | 90kwx2 110kwx1 | 185 | 132kwx3 | 132kwx3 |
| 7010 | 9950 | 7650 | 11400 | 12000 |
| 3950 | 3050 | 4560 | 3200 | 3200 |
| 3730 | 4540 | 4080 | 5050 | 5100 |
